Micro-Probe

Micro-probe


Special Features

1.The probe is socket-less.

It is thicker than standard probe.
The probe tip does not shake and its accuracy and pin contact reliability is greater.
The center tip can be replaced or changed.

2.The moving part is on the wiring side.

It is durable and strong against contamination/flux.
It can be recycled.





What's Microprobe?

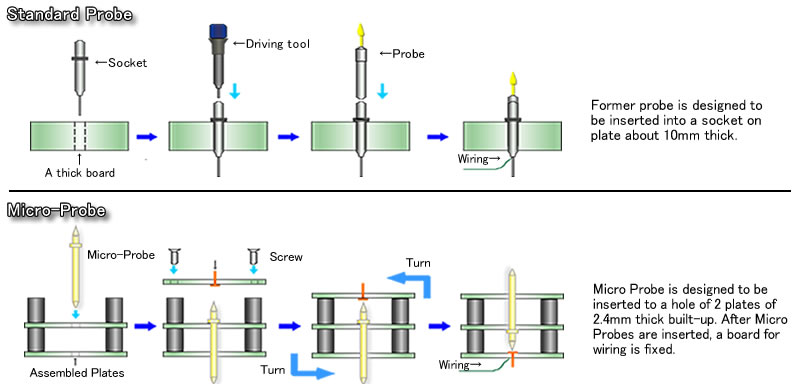

Micro Probe is designned to be inserted to a hole of 2 plates of 2.4mm thick built-up.After MicroProbes are inserted,a board for wiring is fixed.



Fixture Movement
probe_mov

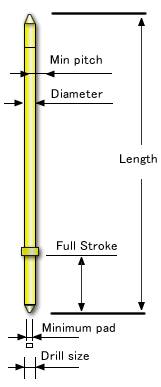

Micro Probe Specifications
*We do not accept direct order from overseas. We do not sell only Micro-Probe to customers.

MTP020 MTP030 MTP040 MTP050 MTP075
Pre-load force (g) (Standard, High) 10 10 20 40 70
2/3 travel force (g) 30 30 50 120 160
Full Stroke (mm) 3.5 3.5 5 5 5
Diameter (mm) 0.38 0.48 0.65 0.9 1.3
Min pitch (mm) 0.55 0.7 0.9 1.2 1.7
Drill size (mm) 0.42 0.52 0.68 0.95 1.35
Minimum pad (mm) 0.35 0.4 0.4 0.65 0.65
Material beryllium / steel

Micro Probe Specification



Parts Number

20mil 30mil 40mil 50mil 75mil
3-Sided Chisel 03 - MTP-030S-03
(30.0mm)
MTP-040S-03
(30.5mm)
MTP-050SHT-03
(30.5mm)
MTP-075EXH-03
(30.5mm)
4-Point Serrated 04 MTP-020S-04
(29.5mm)
MTP-030S-04
(30.0mm)
MTP-040S-04
(30.5mm)
MTP-050SHT-04S
(30.5mm)
-
5-Point Serrated 05 - - - - MTP-075EXH-05
(29.0mm)
9-Point Serrated 09 - - - MTP-050SHT-09
(29.0mm)
-
3-Side Chisel (Sharp) 13 - - - MTP-050SHT-13S
(30.5mm)
MTP-075EXH-13S
(30.5mm)
Reduced Standard Crown 14 MTP-020S-14 (29.5mm) - - MTP-050SHT-14
(29.0mm)
MTP-075EXH-14
(29.0mm)
5-Point Serrated 15 - - - - MTP-075EXH-15
(30.0mm)

※「」Production stoppage. (It is correspondence of the stock limit.)
※※When the end of the parts number is "S", the material is steel. Otherwise, it is beryllium.
