Probe Location Measuring Device



Probe Location Measuring Device



Measuring Probe Location

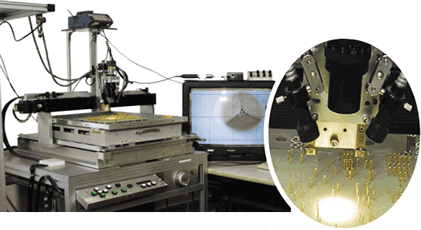

This device can accurately measure probe tip location by 0.02 mm.
CCD camera is used to easily and accurately check probe alignment and contact reliability.

Photo_1

The monitor shows the probe tip location, thus, making socket adjustments easier.
Photo_2
Probe Display Monitor



Fixture Drilling

By replacing the CCD camera with a Drill,
socket holes can be added in the Fixture's plate to accomodate additional probes.

Photo_3

Photo_4
